Next Level Coding and Marking
With CodeIT and Evolabel Print & Apply Solutions

On-demand, high-speed, accurate, and cost-effective labeling with data such as text, 1D or 2D barcodes, and serial numbers.

Powered By CodeIT

Use the CodeIT Team as your Print & Apply "Super Grandmaster".

We can help you select, acquire, install and integrate the most suitable hardware.

We have years of shop-floor experience to share and can help with all your P&A needs.



Print & Apply Technologies powered by CodeIT (CodeIT Group)

Whatever your product ...

We can supply the best print & apply hardware there is, from our Technolgy Partner and industry leader Evolabel.

In addition, we have the software, integration know-how and capabilities, as well as Right Quality Supplies, to be the single source for all your P&A needs.

Evolabel logo

Primary Packaging / Products.

(Consumer Packaging)
Evolabel-Belt-applicator
Norway

F-Pak

Secondary Packaging / Boxes.

(Distribution Packaging)
Evolabel-Wipe90-Alt-G2-front+side
Norway

D-Pak

Tertiary Packaging / Pallets.

(Transport Packaging)
Evolabel-FlexWipeSCA1
Norway

T-Pak

Print

T43 Printer

Evolabel-T43-with-hand

Thermal Transfer technology
Print width up to 4” (108 mm). Resolution 300 dpi.
Often used in applications where the labelled product has a long lifetime, is stored for a long time, or is subject to harsh handling. Examples are wood products and other non-food production scenarios. The T43 printer guarantees excellent barcode readability even after prolonged product storage.
Handy clockwise - counterclockwise capability.

D43 Printer

Evolabel-Central-paper-path

Direct Thermal technology.
Print width up to 4” (108 mm). Resolution 300 dpi.
Direct thermal labels are commonly used in the food industry and for other applications with no extreme demands on extended storage. Direct Thermal technology requires only one media type, making it the most straightforward technology.

D63 Printer

Evolabel-T63-printer

Direct Thermal technology
Print width up to 6” (162 mm). Resolution 300 dpi.
Suitable for pallet and box labeling, where large labels carrying a lot of data are used. The solid machined chassis, made from one piece of aluminum, ensures perfect alignment of wide labels, transfer rollers, print heads, etc. It eliminates the need for mechanical adjustments and assures high-quality printing over time.

and Apply

Belt Applicator

Evolabel-Belt-applicator

This applicator applies labels with high speed and precision from above or from below. The applicator can handle label sizes from 30x30 mm to 118x120 mm.

Blow Applicator

Evolabel-Blow-applicator

An air knife precisely applies labels up to 100 mm to the product without touching it. The same applicator can handle label sizes from 35x35 mm to 100x100 mm.

BlowVAC Applicator

Evolabel-Blow-vac-applicator

The combination of integrated vacuum injectors and air knife ensures precise application of large labels (150x100 mm) from a distance of up to 150 mm. No moving parts ensures safe label application.

Tamp / eTamp

Evolabel-Tamp-applicator

An air knife precisely applies labels up to 100 mm to the product without touching it. The same applicator can handle label sizes from 35x35 mm to 100x100 mm.

Wipe90 G2 Applicator

Evolabel-Wipe90-Alt-G2-front+side

The Wipe90 G2 applicator does the job quickly and safely, utilizing a unique Tactile Arm feature for labeling boxes on two adjacent sides. Wipe90 G2 is configurable for both left and right-side applications.

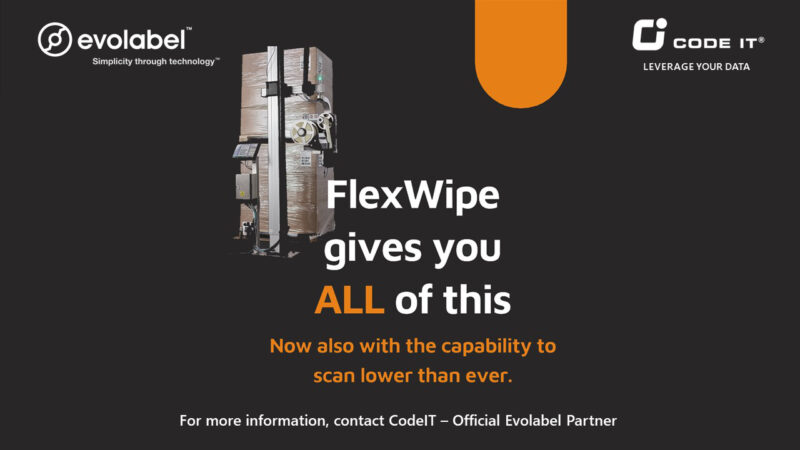

FlexWipe

Evolabel-FlexWipeSCA1

This applicator applies labels with high speed and precision from above or from below. The applicator can handle label sizes from 30x30 mm to 118x120 mm.

Wipe G2

Evolabel-Wipe-G2-corner-wrap-close-up

The Wipe90 G2 applicator does the job quickly and safely, utilizing a unique Tactile Arm feature for labeling boxes on two adjacent sides. Wipe90 G2 is configurable for both left and right-side applications.

QuickTamp

Evolabel-Quicktamp

The combination of integrated vacuum injectors and air knife ensures precise application of large labels (150x100 mm) from a distance of up to 150 mm. No moving parts ensures safe label application.

Why did we choose Evolabel as our Technology Partner?

Evolabel Craftsmanship
Play Video

Designed for all situations

  • Ethernet/LAN, USB, CANopen, and RS-232 communication are all supported.
  • The compact, neat design, stable, flexible brackets and holders make mechanical installation easy.
  • With their minimal footprint, Evolabel print-and-apply systems fit where there is limited space.

Same label roll diameters for all printers

  • Core dia.: 3” (76 mm). Max outer dia.: 12” (300 mm).

Easy and safe to operate

  • The label path is uncomplicated and straightforward – allowing anyone to change labels without complex instructions.
  • Warnings like "paper low" and alarms like "paper out" clearly prompt the user through the touch display and the Status Beacon.
  • The applicator folds away automatically when changing labels.
  • Ample room around the label path makes changing the label and ribbon easy.
  • The patented divided media sensor eliminates mistakes.
  • The media sensor calibrates itself automatically when changing labels.
  • The specially designed air nozzle eliminates the "blowpipe effect."

Print & Apply in freezing conditions.

Click on image for more info.

CodeIT special solutions that incorporate Evolabel equipment.

Click on image for more info.
Click on image for more info.
Click on image for more info.

Dig deeper into the inspiring world of Evolabel and CodeIT:

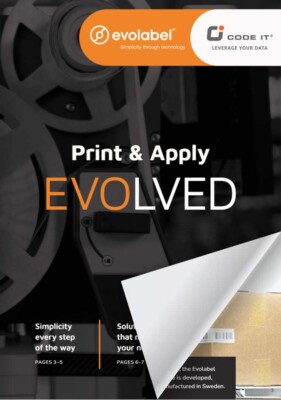

Click on the flip-book to open it.

We can also help with consumables

Click on image for more info.

And of course, service and support
